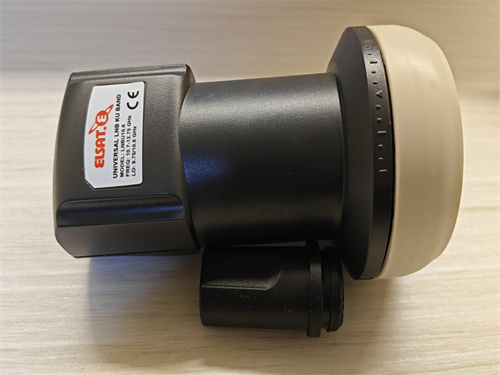

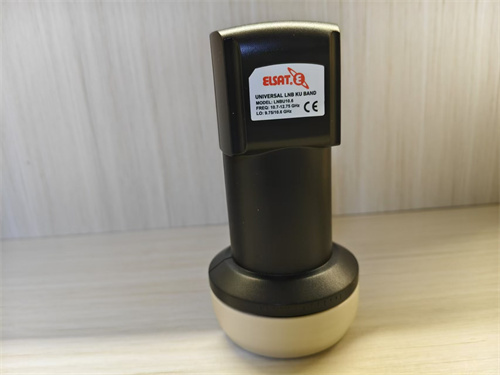

UNIVERSAL LNB KU BANDMODEL: LNBU10.6FREQ

Frequency Range:
L.0.Frequency:
L.0.Frequency Stability!
Output Frequency Range:
Noise Figure:
Conversion
Gain Flatness.
Low Range 10.7-11.7GH2High Band:11.7 -12.75GH2
Low Band 9.75GHzHigh Band 10.6GHz
+-1.0MHz(Max)@ +25°C+-2.0MHz(Max)@-40℃~+60℃
950~2150MHz
Low Band 0.8dB (Typ.)High Band 0.8dB (Typ.)
58dB (Min) 70dB (Max)
+-0.75dB/36MHz
-50dBc / Hz @ 1KHz
L.0.Phase Noise:
-75dBc / Hz @ 10KHz
-95dBc/ Hz @ 100KHz
Cross POL.lsolation!
25dB (Min)
Ouput Power:
0dB (AT 2dB Gain Compression)
40dB(Min)
lmage Rejection:
45dB(Min)
Output VSWR:
2.5:1
3rd Order Intercept Output.
-65dBm(Max)
Max. In Band Spurious Level
50dBc(Max)
DcCurrent consumption:
11 20/120 Vdc/mA
_ow/High Bands Switching:
Vertical @ 11~14.5V
cnino yoltage:
Horizontal@ 16~20V

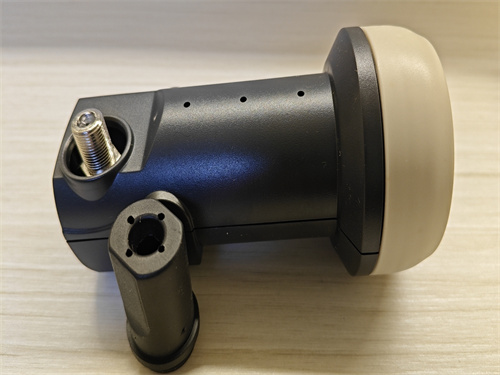

JUtDUtonnector
F-Type (Female), 75Ω
