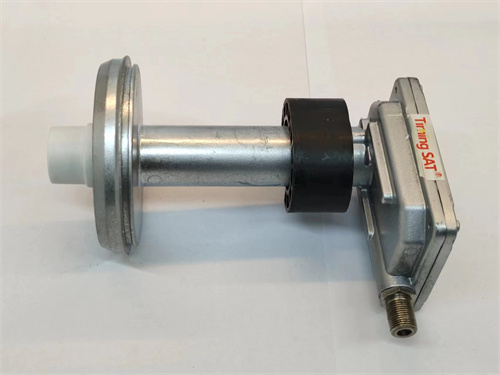

Positive feed Ku band high gain focus LNBF Universal-9750-10600 high frequency head

Positive feed Ku band high gain focus LNBF Universal-9750-10600 high frequency head
Product description: Positive feed Ku band high gain focus LNBF Universal-9750-10600 high frequency head
INQUIRY

Main Features:

• Superior Phase Noise performance, DVB-S2 (HDTV) compliant

• Excellent Cross Polarization Isolation

• Very Low Spurious Levels

• Superior Noise Figure

• Higher Conversion Gain 70DB

• Ultimate Reliability

Specification:
1.Input Frequency:
1).Low Band:10.70 GHz -11.70GHz
2).High Band:11.70 GHz -12.75GH
2.Output Frequency:
1).Low Band:950-1950MHz
2).High Band:1100-2150MHz
3.L.O. Frequency:
1).Low Band:9.75GHz(1MHz@25centigrade)
2).High Band:10.6 GHz(1MHz@25centigrade)
4.L.O. Stability:
1).Low Band:±1MHz(-40centigrade to +70centigrade)
2).High Band:±1MHz(-40centigrade to +70centigrade)
5.Noise Figure: 0.1dB
6.Conversion Gain:70db
7.Gain Flatness≤+/-2dB
