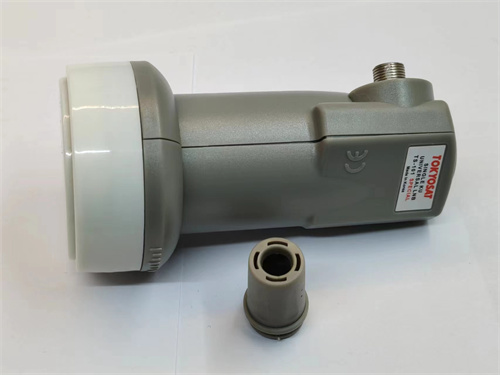

Rare edition genuine waterproof imported TOKYOSAT double this vibration single output KU high frequency head atlas 116 Korea skylife 88KU recommended special head

characteristic: Low noise index, and low power consumption Digital support, easy to install High-quality components, a professional PCB board Aluminum alloy die-cast inner shell, PVC shell High quality protection level, small environmental protection loss explain: Input frequency: 10.70~11.7GHz (low frequency), 11.70~12.75GHz (high frequency) Output frequency: 950~1,950 MHz (low frequency), 1,100~2,150 MHz (high frequency) Local vibration frequency: 9.75/10.6GHz Noise index: 0.1dB (Typ) Conversion gain: 55dB (Typ) Output ratio: 0.6 Input interface: WR-75 Polarization isolation: 20dB (Typ) Mirror inhibition: 45dB (Min) Polarization selection: Vertical: 12-14.5V, horizontal: 16-18V Operating voltage: vertical: 11.5~14V DC, vertical: 16~19V DC Bandwidth conversion pulse: 0 / 22KHz tone DC current consumption: 160 mA (Max) Phase noise: -70dB / Hz (10 KHz); -90dB / Hz (100 KHz); -110dB / Hz (1 KHz) Output power: 10dB (Min) (the gain is 1dB compression point) Output voltage out of wave ratio: 2.5:1 (Max) Output interface: 75 Ω F head Operating temperature: -40℃ ~ + 60℃ Storage temperature: -55℃ ~ + 80℃
