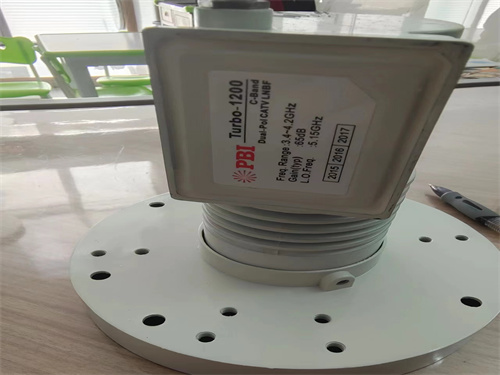

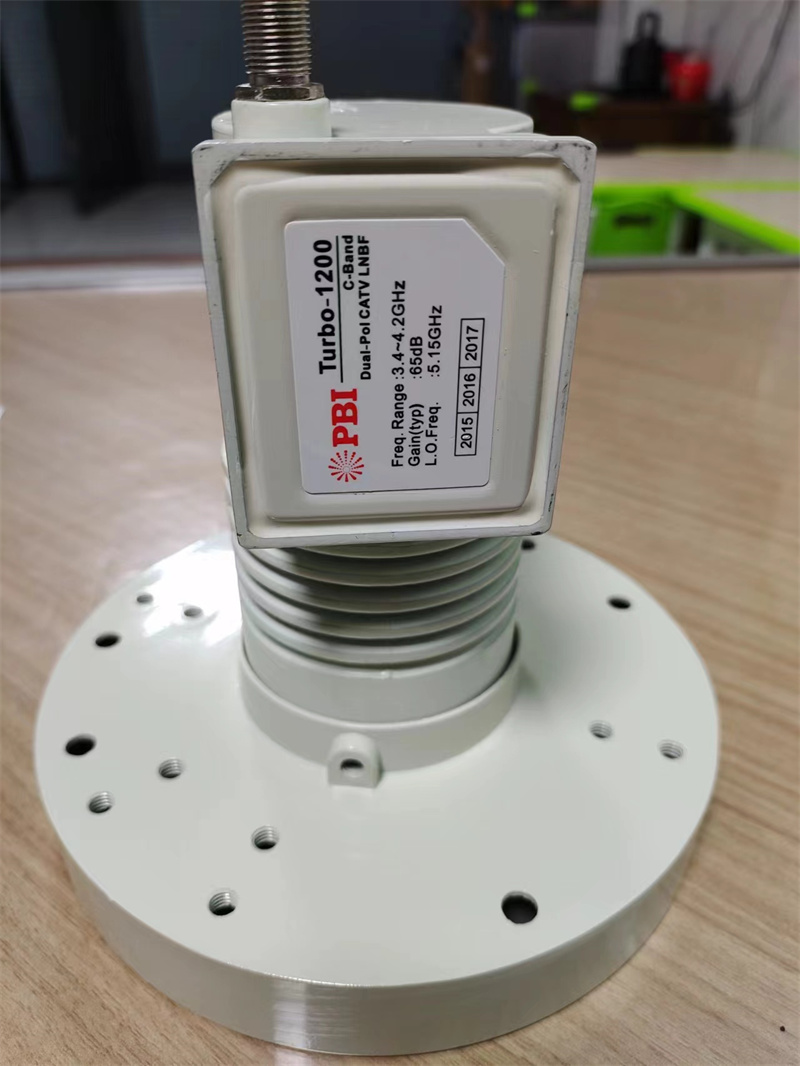

PBI Turbo-1200 C band 5150 bipolarization single output high frequency head

PBI-1200 is a voltage switching double polarization single local vibration 5150 local vibration C band high frequency head, using the satellite TV receiver output 13 / 18V different voltage to the LNB, to realize the satellite TV signal receiving horizontal polarized wave or vertical polarized wave. Input frequency 3.4~4.2GHz Output frequency 950 ~ 1750 MHz local vibration frequency 5.15GHz±0.5MHz gain 65dB (type) mirror suppression system 50dB (min) output voltage standing wave ratio 2.5:1 (max), output connector 75 Ω F power supply vertical polarization 12.0~14.5V; Horizontal polarization 15.0~25.5V zero scale is perpendicular to the ground); 200mA (max) cross-polarization isolation 27dB (type) operating temperature-30-60℃ volume 180mmx80mmx75mm weight 650g With the three-ring high-quality thickened pure aluminum feed
