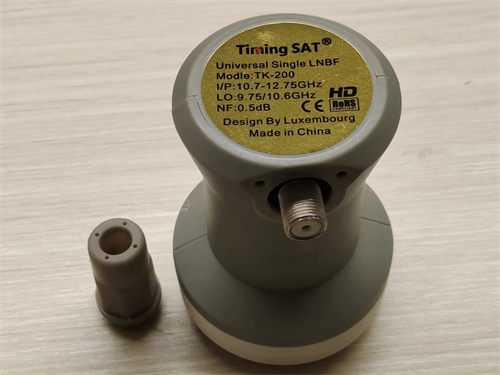

Timing SAT TK200 Dual local vibration frequency downer, the receiving capacity is stronger

Product name: KU band double local vibration single output integrated frequency reducer (satellite antenna KU high frequency head) Product model: Timing SAT TK200 Double Product profile: Timing SAT TK200KU Band double local vibration bipolar single output feed integrated satellite high frequency head, with high sensitivity, high gain, low noise coefficient, low phase noise and other characteristics, fully suitable for satellite digital TV reception requirements; Satellite high frequency head partial feed type double local vibration high frequency head, directly applicable to Ku partial feed antenna; it is recommended to carry our special horn feed Satellite high frequency head adopts electrostatic spraying high quality plastic shell, elegant and beautiful; It has fully passed the test and certification of national professional institutions, and has been widely used in a large number of CATV front-end system and home satellite receiving single station. qualification: Input frequency: 10.7~12.75GHz The output frequency is 950 to 2150 MHz Gain of 57dB (type) Gain flatness is ± 0.5dB / 27 MHz Local vibration frequency: 9.75/10.6GHz Local vibration stability is ± 500 KHz -60 dBc / Hz (@ 1 KHz); -80 dBc / Hz (@ 10 KHz); -100 dBc / Hz (@ 100 KHz) The noise coefficient is 0.1dB Cross-isolation 27 Db (min.) Parasitic output-60 dBc (max.) Output voltage ratio 2.0:1 (max.) 1dB gain compression point output power 0.0 dBm (min.) Mirror image inhibition for 50dB Horizontal polarization (when zero scale is vertical to the ground) Power supply 10 ~ 24 VPC, 180 mA (max.) Operating temperature-30~60℃ Timing SAT TK200 Satellite high frequency head can be equipped with high efficiency KU partial focal feed suitable for large diameter KU antenna, can also be equipped with positive focal feed used in large diameter positive feed antenna.
