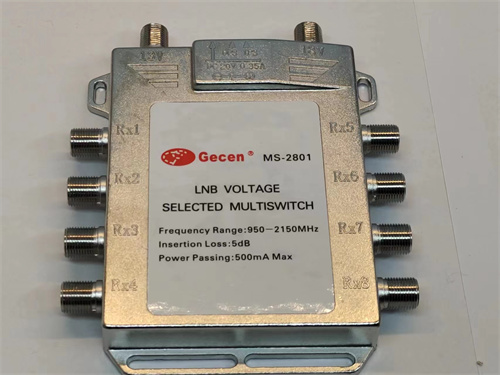

Jia xun two in eight multi-channel SAT switch 13 / 18V voltage switch

MS-2801 Product features: 1. Die cast shell of zinc alloy, nickel plating surface 2. High-quality components, professional line design, small loss 3. The receiver output 13 / 18V voltage through the coaxial cable to switch the switch switch to the corresponding port 4. It can access two satellite TV signals at the same time, and switch one way through 13 / 18V 5. It can be used by six users at the same time without interfering with each other 6. Suitable for multi-star and multi-machine use 7. Can be powered by a receiver or an external power supply MS-2801 Parameter Description: project parameter project parameter frequency range 950-2150(MHz) Work consumes current 30(mA) insertion loss 5(dB) through current 500(mA) insulate 25(dB) Optional DC power supply 20V（±1）350mA reflection loss 10(dB) Port impedance 75(Ω) normal working voltage 12-20(V) Control switching voltage: 13 / 18V Connector: "F" type
