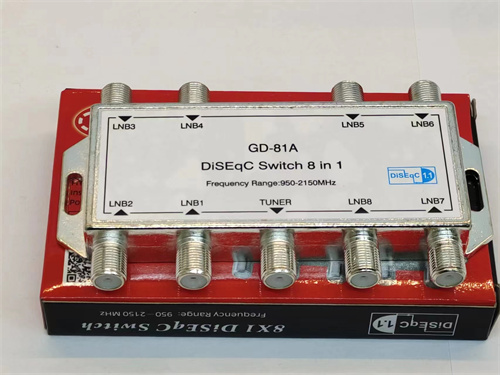

The DiSEqC 8x1 switch satellite signal eight cut one switch GD-81A satellite branch

Product features: 1. A die-casting shell of zinc alloy with nickel plating surface 2. High-quality components, professional line design, small loss 3. High-quality chip, professional programming, compatible with more models 4. With the DiSEqC 1.1 control function 5. Select one of the eight satellite signals by providing DiSEqC 1.1 instruction from the receiver 6. Transfer control commands and satellite signals simultaneously with a coaxial cable GD-81A parameter description: project parameter project parameter frequency range 950-2150(MHz) normal working voltage 12-20(V) insertion loss 3(dB) Work consumes current 10(mA) insulate 20(dB) Maximum pass current 500(mA) reflection loss 8(dB) Port impedance 75(Ω) Control switching signal: DiSEqC 1.1 Connector head: "F" type English system
