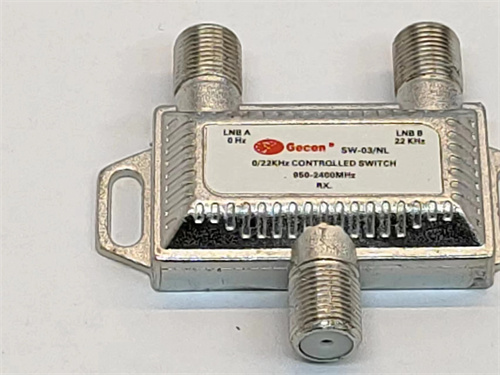

SW-03 / NL satellite signal switch 0 / 22K two cut one switch

Product features: 1. Die cast shell of zinc alloy, nickel plating surface The 2.0 / 22 KHz signal is processed by professional circuit, compatible with more models 3. Select one of the two satellite signals through the receiver providing the 0 / 22 KHz signal 4. Use a coaxial cable to transmit the control signals and the satellite signals simultaneously SW-03 / NL parameter description: project parameter project parameter frequency range 950-2400(MHz) normal working voltage 12-20(V) insertion loss 3(dB) Work consumes current 10mA insulate 20(dB) Maximum pass current 500mA reflection loss 8(dB) Port impedance 75Ω Connector head: "F" type English system
