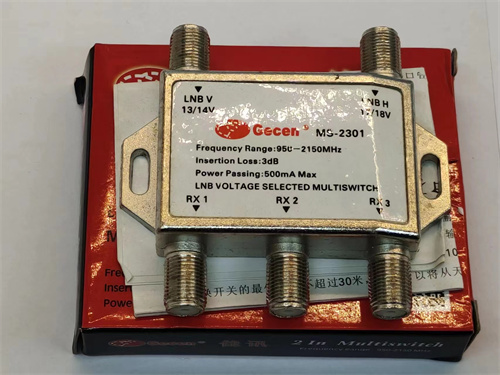

Jia xun two in three out SAT multi-channel switch 13 / 18V switch MS-2301

Product features: 1. A die-casting shell of zinc alloy with nickel plating surface 2. High-quality components, professional line design, small loss 3. The receiver output 13 / 18V voltage through the coaxial cable to switch the switch switch to the corresponding port 4. It can access two satellite TV signals at the same time, and switch one way through 13 / 18V 5. It can be used by three users at the same time without interfering with each other 6. Suitable for multi-star and multi-machine use MS-2301 Parameter Description: project parameter project parameter frequency range 950-2150(MHz) normal working voltage 12-20(V) insertion loss 5(dB) Work consumes current 30(mA) insulate 25(dB) Maximum pass current 500(mA) reflection loss 10(dB) Port impedance 75(Ω) Maximum passing current: 13 / 18V Connector: "F" type
